Shell Hotel Luxury Dome

$9,750.00

$9,750.00 to $13,250.00 · 12 configurations

Lead time

6 to 10 weeks from order, size dependent. We confirm the date in writing when the order is placed.

Freight

Ships LTL freight to a street address. Liftgate and curbside delivery are included on standard orders. White glove placement is available where the site allows. See Shipping and White Glove for full detail.

Assembly

Ships with drawings and a numbered assembly sequence. Most operators use a local crew. Call us and we will help you scope that work first.

Warranty

The manufacturer's warranty, registered in your name at handover. Terms are stated on the product page before you order.

What this is

Specification and build.

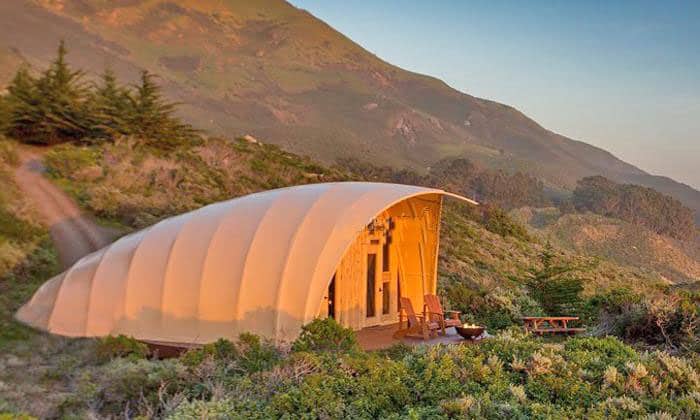

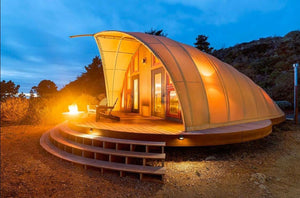

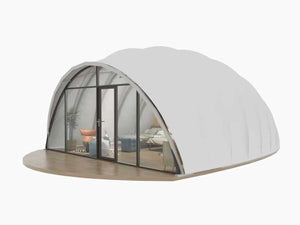

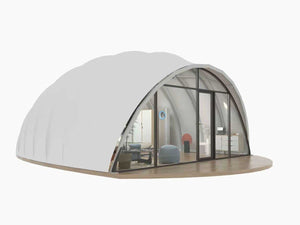

A shell-form dome with the entire front elevation in tempered glass and an elevated wooden floor that runs out past the glass to form a deck. It is built for sites where the view is the product, whether a cliff edge, a ridge line or a lake frontage, because everything the guest sees from the bed is through that front wall.

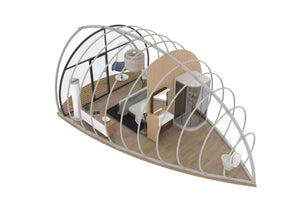

The frame is anti-rust galvanised steel pipe under a PVDF cover, and the anchoring uses extended steel pipes rather than a poured foundation, so the unit can go on ground you would not pour concrete on.

Sizes

Model	Dimensions	Floor area
CSD8300	16.4 × 26 × 11.5 ft	285 sq ft
CSD9400	23 × 29.5 × 11.5 ft	538 sq ft

Construction

Frame	Anti-rust treated galvanised painted steel pipe
Cover	PVDF. Flame retardant, waterproof, UV50+

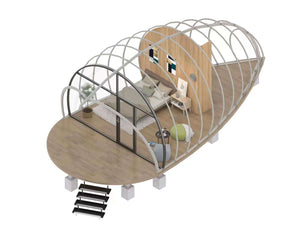

Floor	Elevated wood, anti-termite treated, extended as a front deck

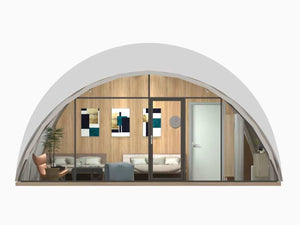

Window	Full tempered glass front
Door	Tempered glass double door in aluminium alloy frame

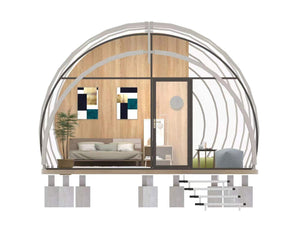

Anchoring	Extended steel pipe reinforcement
Colours	White, black, grey, cream, orange, blue

Options

Thermo-insulated liner
Curtain and rod set
Heating: wood stove off-grid, or mini HVAC on-grid
Cooling: mini HVAC

Furniture is not included. Modular toilet, shower and kitchen units are specified separately and are not included in the dome price.

Priced and lead-timed per project. Tell us the size, the finish and the unit count and we will come back with a quote.

Before you order

Do I need a permit?

Often, and the threshold varies by county. Structures over roughly 200 square feet, or anything with plumbing or permanent power, generally require review. We supply engineering drawings and load calculations for your submission.

Before you order

What does the base need?

A level, compacted pad with anchor points. Concrete, timber deck and screw piles are all used. The anchor pattern is in the drawings and depends on the model and your local wind load.

Before you order

Which model fits the site?

Call us with the site dimensions, your winter low and how you plan to use it. We will tell you which models fit and what each one costs delivered. The price on the page is the price you pay, one unit or ten.
