Polycarbonate Domes PCDO Series

$11,700.00

$11,700.00 to $22,280.00 · 5 configurations

Lead time

6 to 10 weeks from order, size dependent. We confirm the date in writing when the order is placed.

Freight

Ships LTL freight to a street address. Liftgate and curbside delivery are included on standard orders. White glove placement is available where the site allows. See Shipping and White Glove for full detail.

Assembly

Ships with drawings and a numbered assembly sequence. Most operators use a local crew. Call us and we will help you scope that work first.

Warranty

The manufacturer's warranty, registered in your name at handover. Terms are stated on the product page before you order.

What this is

Specification and build.

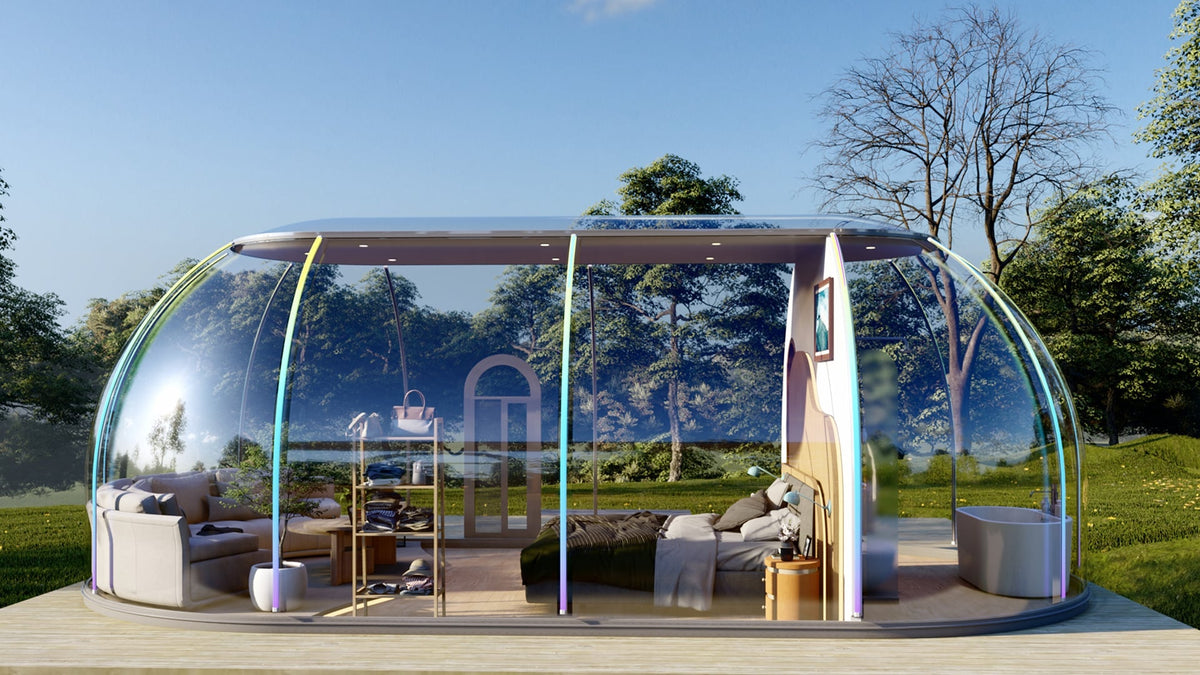

The PCDO is the elongated version of the polycarbonate dome: an oval footprint 11 to 16 feet wide and 16 to 28 feet long, giving 162 to 375 square feet. The length is what makes it usable as a room, a bed at one end and a seating area at the other, rather than a single circular space.

Same rigid moulded polycarbonate shell and crown skylight as the round PCD series, with aluminium-reinforced framing.

Sizes

Model	Length	Width	Height	Floor area
PCDO 5300	16 ft	11 ft	9 ft	162 sq ft
PCDO 7350	21 ft	11 ft	9 ft	215 sq ft
PCDO 7975	23 ft	13 ft	10 ft	267 sq ft
PCDO 7999	25 ft	15 ft	10 ft	321 sq ft
PCDO 8750	28 ft	16 ft	11 ft	375 sq ft

Construction

Frame	Moulded polycarbonate reinforced with aluminium supports
Shell panels	Transparent polycarbonate. Flame retardant, waterproof, UV50+
Skylight	Polycarbonate, crown of the dome
Windows	Polycarbonate, on the sides
Door	Polycarbonate in aluminium alloy frame
Insulation	Nano insulating film on the shell panels
Base	Foundation with steel reinforcement, anchored

Options

Curtain and rod set
Heating and cooling: mini HVAC
Integrated modular toilet and shower

Power and water can run from solar or a generator, or connect to existing supply.

Furniture is not included. Modular toilet, shower and kitchen units are specified separately and are not included in the dome price.

Priced and lead-timed per project. Tell us the size, the finish and the unit count and we will come back with a quote.

Before you order

Do I need a permit?

Often, and the threshold varies by county. Structures over roughly 200 square feet, or anything with plumbing or permanent power, generally require review. We supply engineering drawings and load calculations for your submission.

Before you order

What does the base need?

A level, compacted pad with anchor points. Concrete, timber deck and screw piles are all used. The anchor pattern is in the drawings and depends on the model and your local wind load.

Before you order

Which model fits the site?

Call us with the site dimensions, your winter low and how you plan to use it. We will tell you which models fit and what each one costs delivered. The price on the page is the price you pay, one unit or ten.
