Modern S-Shaped Luxury Dome - SDS Series

$20,650.00

$20,650.00 to $97,500.00 · 30 configurations

Lead time

6 to 10 weeks from order, size dependent. We confirm the date in writing when the order is placed.

Freight

Ships LTL freight to a street address. Liftgate and curbside delivery are included on standard orders. White glove placement is available where the site allows. See Shipping and White Glove for full detail.

Assembly

Ships with drawings and a numbered assembly sequence. Most operators use a local crew. Call us and we will help you scope that work first.

Warranty

The manufacturer's warranty, registered in your name at handover. Terms are stated on the product page before you order.

What this is

Specification and build.

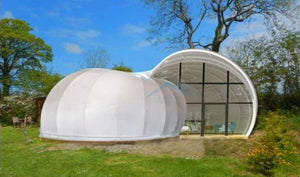

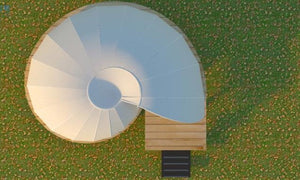

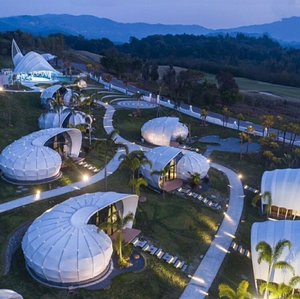

An S-profile shell rather than a hemisphere, which gives the SDS more usable height along its length than a dome of the same footprint. Sizes run from 355 square feet up to 1,937, and custom sizes are made to order.

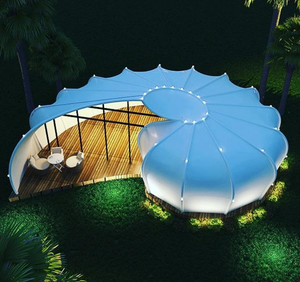

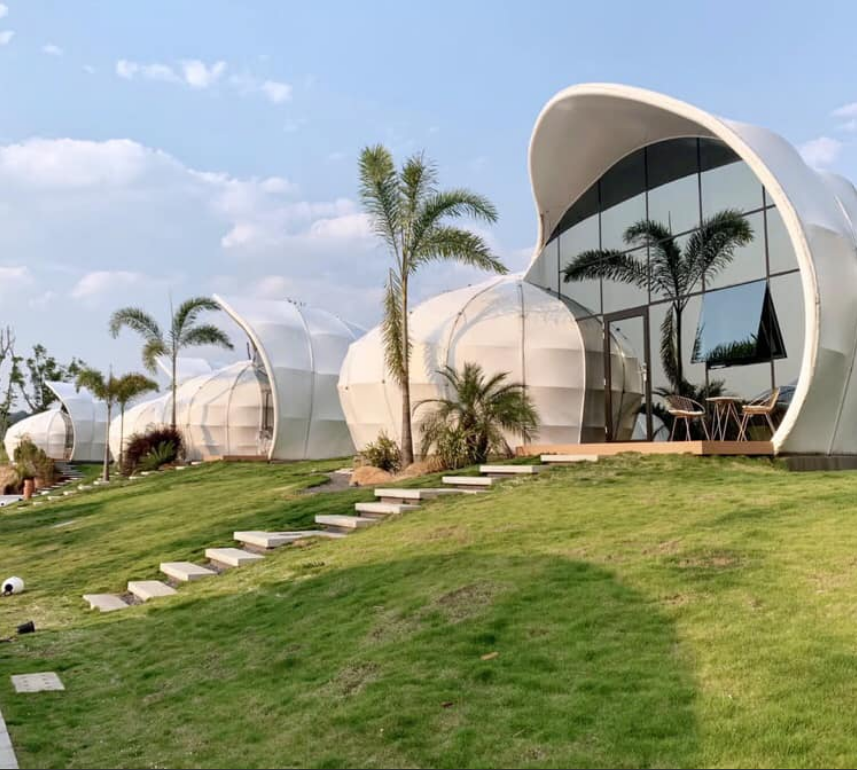

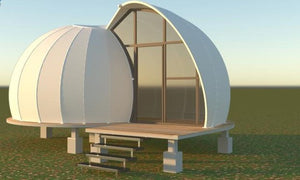

The full glass front carries a double door onto a deck, and the front windows are screened and openable, a detail that matters more than it sounds on sites with insects, because it means the unit ventilates without the doors standing open. A PVC skylight and a solar fan are available.

Sizes

Model	Footprint	Floor area
SDS1000	20 × 23 ft	355.2 sq ft
SDS1050	23 × 30 ft	462.8 sq ft
SDS1100	26 × 30 ft	592 sq ft
SDS1400	36 × 45 ft	699.7 sq ft
SDS1600	52 × 59 ft	1,937 sq ft

Construction

Frame	Anti-rust treated galvanised steel
Cover	PVDF. Flame retardant, waterproof, UV50+, anti-mildew, self-cleaning
Windows	Full tempered glass, screened and openable
Door	Tempered glass double door in aluminium alloy frame, with deck
Optional equipment	Solar fan; PVC skylight
Colours	White, black, grey, cream, orange, blue

Options

Thermo-insulated liner
Curtain and rod set
Heating: wood stove off-grid, or mini HVAC on-grid
Cooling: mini HVAC

Power and water can run from solar or a generator, or connect to existing supply.

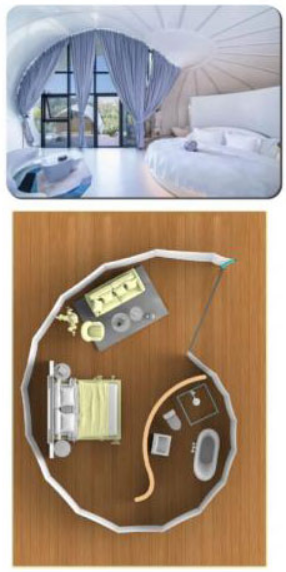

Furniture is not included. Modular toilet, shower and kitchen units are specified separately and are not included in the dome price.

Priced and lead-timed per project. Tell us the size, the finish and the unit count and we will come back with a quote.

Before you order

Do I need a permit?

Often, and the threshold varies by county. Structures over roughly 200 square feet, or anything with plumbing or permanent power, generally require review. We supply engineering drawings and load calculations for your submission.

Before you order

What does the base need?

A level, compacted pad with anchor points. Concrete, timber deck and screw piles are all used. The anchor pattern is in the drawings and depends on the model and your local wind load.

Before you order

Which model fits the site?

Call us with the site dimensions, your winter low and how you plan to use it. We will tell you which models fit and what each one costs delivered. The price on the page is the price you pay, one unit or ten.
