Geodesic Glass Domes GDO Series

$21,500.00

$21,500.00 to $76,000.00 · 8 configurations

Lead time

6 to 10 weeks from order, size dependent. We confirm the date in writing when the order is placed.

Freight

Ships LTL freight to a street address. Liftgate and curbside delivery are included on standard orders. White glove placement is available where the site allows. See Shipping and White Glove for full detail.

Assembly

Ships with drawings and a numbered assembly sequence. Most operators use a local crew. Call us and we will help you scope that work first.

Warranty

The manufacturer's warranty, registered in your name at handover. Terms are stated on the product page before you order.

What this is

Specification and build.

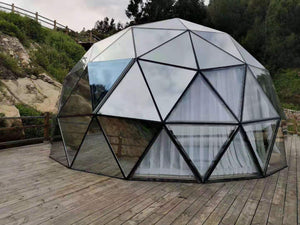

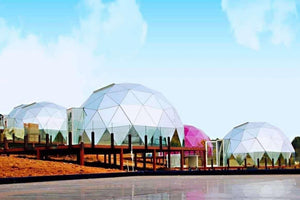

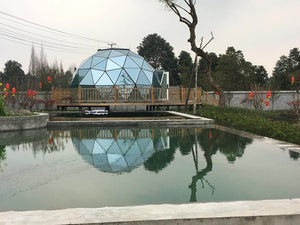

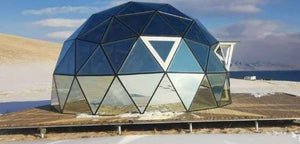

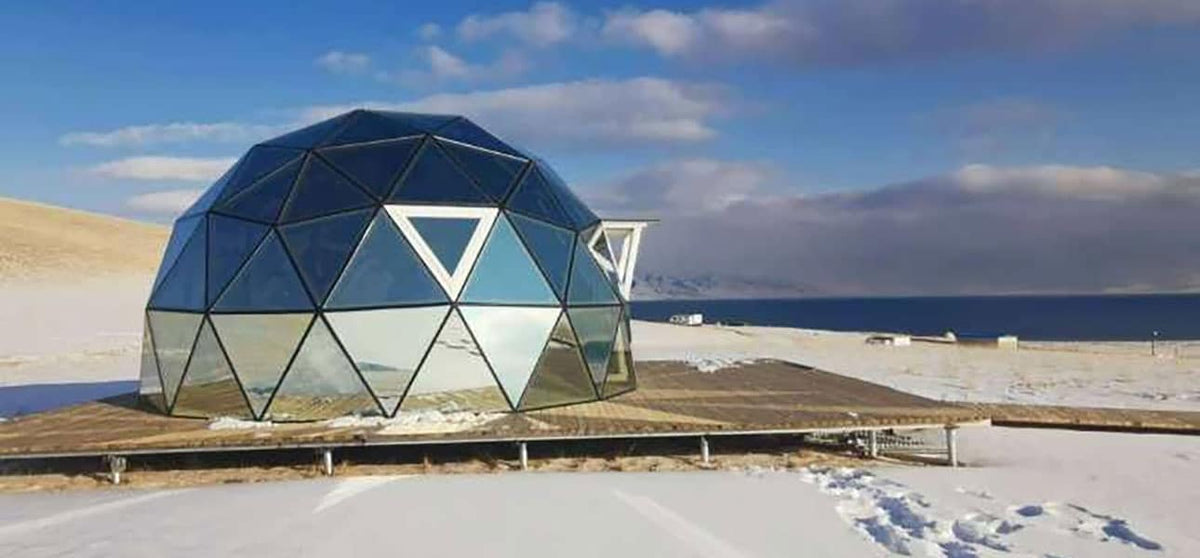

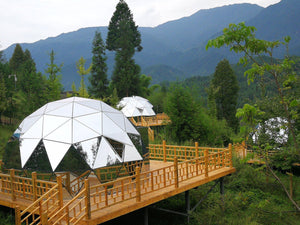

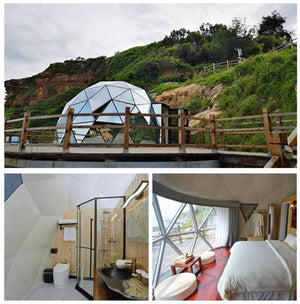

A fully glazed geodesic dome: double-pane glass panels on a load-bearing aluminium alloy frame, with no fabric anywhere in the structure. It is the version of this product that reads as permanent architecture, and the one that suits a spa terrace, an observatory or a year-round dining room.

Eight sizes run from 136 to 1,217 square feet. Glass can be specified clear, anthracite blue or other tints, and the panels take a nano insulating film for heat and glare control.

Sizes

Model	Diameter	Height	Floor area
GD0134	13 ft	7.5 ft	136 sq ft
GD0165	16 ft	9.8 ft	212 sq ft
GD0206	20 ft	11.5 ft	305 sq ft
GD0237	23 ft	13 ft	415 sq ft
GD0268	26 ft	13 ft	541 sq ft
GD0309	30 ft	16 ft	685 sq ft
GD33310	33 ft	20 ft	845 sq ft
GD3912	39 ft	20 ft	1,217 sq ft

Construction

Frame	Load-bearing aluminium alloy
Shell panels	Double-pane glass. Flame retardant, UV shielding, water and mildew resistant
Windows	Double-pane glass on the sides
Door	Double-pane glass in aluminium frame
Insulation	Nano insulating film on the shell panels
Glass tints	Clear, anthracite blue, other colours to order

Options

Thermo-insulated liner
Curtain and rod set
Heating: wood stove off-grid, or mini HVAC on-grid
Cooling: mini HVAC

Furniture is not included. Modular toilet, shower and kitchen units are specified separately and are not included in the dome price.

Priced and lead-timed per project. Tell us the size, the finish and the unit count and we will come back with a quote.

Before you order

Do I need a permit?

Often, and the threshold varies by county. Structures over roughly 200 square feet, or anything with plumbing or permanent power, generally require review. We supply engineering drawings and load calculations for your submission.

Before you order

What does the base need?

A level, compacted pad with anchor points. Concrete, timber deck and screw piles are all used. The anchor pattern is in the drawings and depends on the model and your local wind load.

Before you order

Which model fits the site?

Call us with the site dimensions, your winter low and how you plan to use it. We will tell you which models fit and what each one costs delivered. The price on the page is the price you pay, one unit or ten.
