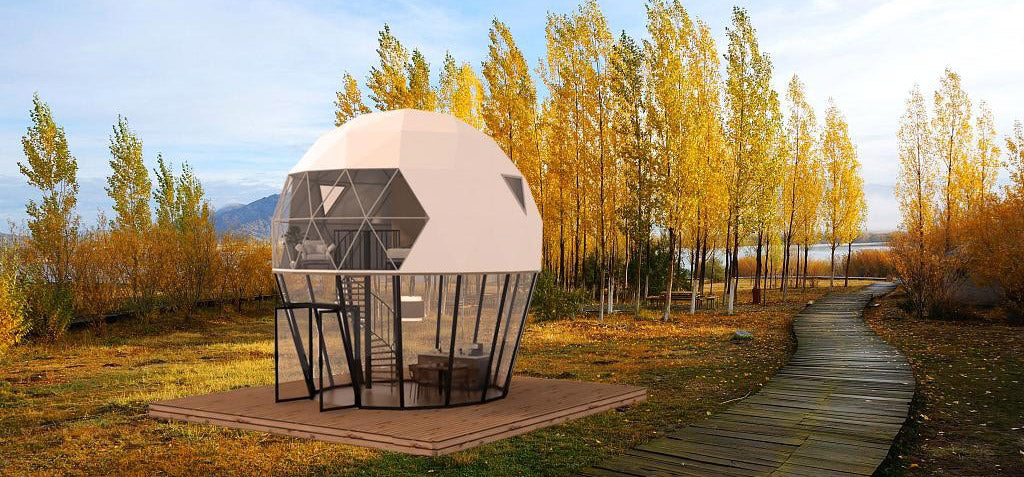

Duplex Dome

$55,200.00

$55,200.00 to $75,900.00 · 18 configurations

Lead time

6 to 10 weeks from order, size dependent. We confirm the date in writing when the order is placed.

Freight

Ships LTL freight to a street address. Liftgate and curbside delivery are included on standard orders. White glove placement is available where the site allows. See Shipping and White Glove for full detail.

Assembly

Ships with drawings and a numbered assembly sequence. Most operators use a local crew. Call us and we will help you scope that work first.

Warranty

The manufacturer's warranty, registered in your name at handover. Terms are stated on the product page before you order.

What this is

Specification and build.

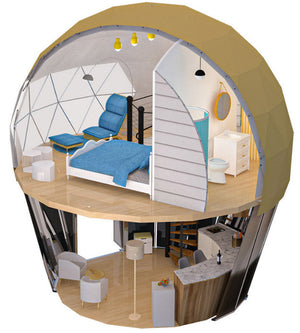

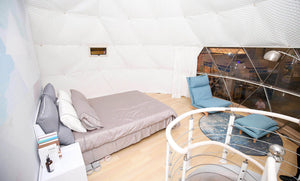

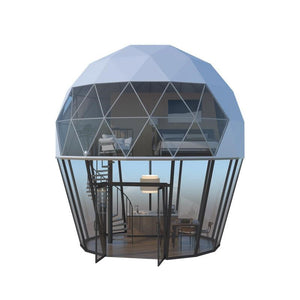

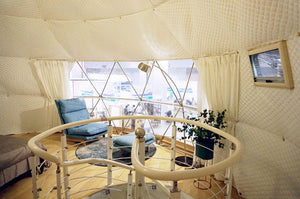

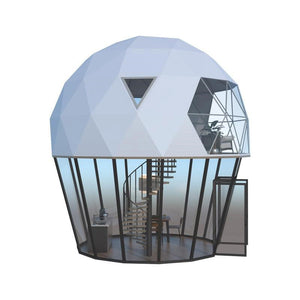

Two floors inside one dome, connected by a staircase. The lower floor is wrapped in laminated panoramic glass and the upper floor carries a large bay window under a PVC shell, so the ground level reads as a living room and the upper level as a bedroom with a view, or the reverse, depending on how the site sits.

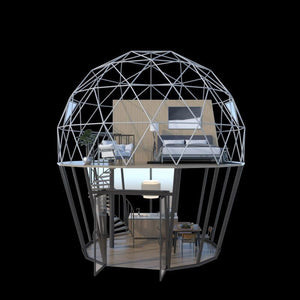

The steel truss frame is what makes the second storey possible; this is a structurally different product from the single-skin domes, not a larger version of one. Insulation is specified separately for each level: ceiling liner and cotton below, thermo liner above.

Sizes

Model	Total diameter	First floor	Second floor
DSDP6300	21 ft	15 ft dia, 160 sq ft	20 ft dia, 305 sq ft
DSDP7300	23 ft	18 ft dia, 235 sq ft	23 ft dia, 415 sq ft
DSDP8300	26 ft	21 ft dia, 332 sq ft	26 ft dia, 541 sq ft

Construction

Frame	Galvanised painted steel, truss structure
Cover	PVC. Flame retardant, waterproof, UV50+
First floor glazing	Laminated tempered panoramic glass windows
Second floor glazing	Large bay window plus two glass windows
Floors	Laminate on both levels
Door	Tempered glass in aluminium alloy frame
Insulation	First floor: ceiling liner and cotton. Second floor: thermo liner. Curtain and rod set included.
Colours	White, black, grey, cream, orange, blue

Options

Heating: wood stove off-grid, or mini HVAC on-grid
Cooling: mini HVAC
Integrated modular kitchen with cabinets
Integrated modular toilet and shower with tiled floor and fixtures

Power and water can run from solar or a generator, or connect to existing supply.

Furniture is not included. Modular toilet, shower and kitchen units are specified separately and are not included in the dome price.

Priced and lead-timed per project. Tell us the size, the finish and the unit count and we will come back with a quote.

Before you order

Do I need a permit?

Often, and the threshold varies by county. Structures over roughly 200 square feet, or anything with plumbing or permanent power, generally require review. We supply engineering drawings and load calculations for your submission.

Before you order

What does the base need?

A level, compacted pad with anchor points. Concrete, timber deck and screw piles are all used. The anchor pattern is in the drawings and depends on the model and your local wind load.

Before you order

Which model fits the site?

Call us with the site dimensions, your winter low and how you plan to use it. We will tell you which models fit and what each one costs delivered. The price on the page is the price you pay, one unit or ten.
