Clear Event Dome - CDS Series

$4,430.00

$4,430.00 to $278,855.00 · 21 configurations

Model

ModelCDS4300

Talk to an expert. (404) 445-8655

Lead time

6 to 10 weeks from order, size dependent. We confirm the date in writing when the order is placed.

Freight

Ships LTL freight to a street address. Liftgate and curbside delivery are included on standard orders. White glove placement is available where the site allows. See Shipping and White Glove for full detail.

Assembly

Ships with drawings and a numbered assembly sequence. Most operators use a local crew. Call us and we will help you scope that work first.

Warranty

The manufacturer's warranty, registered in your name at handover. Terms are stated on the product page before you order.

What this is

Specification and build.

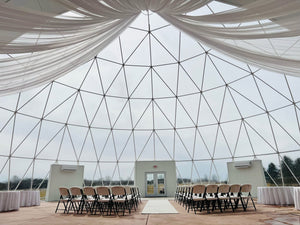

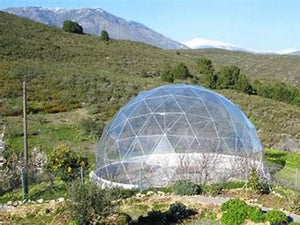

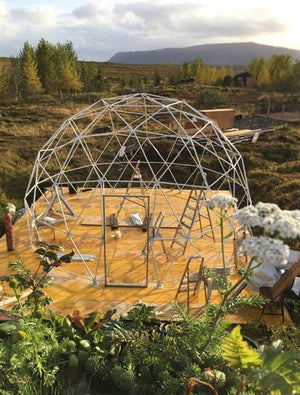

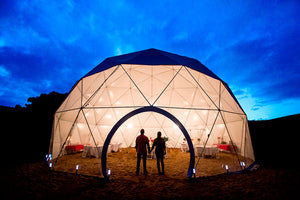

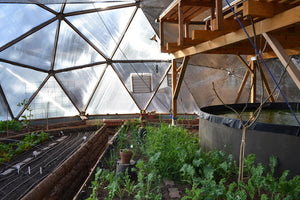

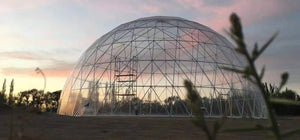

The CDS is a clear PVC geodesic dome on a galvanized steel frame. Because the cover is transparent rather than tinted or opaque, the interior runs warmer than the air outside whenever the sun is on it, which is what makes the same shell work for a winter events terrace, a year round growing house and a backyard room that stays usable through cold months.

Twenty one sizes are built, from a 13 ft. dome of 136 sq. ft. up to a 164 ft. dome of 21,125 sq. ft. The frequency in the model name refers to how finely the geodesic frame is subdivided: higher frequency means more struts, a rounder shell and a longer clear span, which is why the largest domes are all 8V.

Doors are glass in a steel frame. Windows are glass on hydraulic arms, with fiberglass screen vents built into the shell so the dome can be aired out without letting insects in. The base is anchored and reinforced. Power and water can run off solar or a generator, or tie into existing service on site.

Sizes

Model	Frequency	Diameter	Height	Floor area
CDS4300	3V	13 ft.	8 ft.	136 sq. ft.
CDS5300	3V	16 ft.	10 ft.	212 sq. ft.
CDS6300	3V	20 ft.	12 ft.	305 sq. ft.
CDS7300	3V	23 ft.	13 ft.	415 sq. ft.
CDS8300	3V	26 ft.	15 ft.	541 sq. ft.
CDS9400	4V	30 ft.	15 ft.	685 sq. ft.
CDS1040	4V	33 ft.	16 ft.	845 sq. ft.
CDS1140	4V	36 ft.	18 ft.	1,023 sq. ft.
CDS1240	4V	39 ft.	20 ft.	1,217 sq. ft.
CDS1340	4V	43 ft.	21 ft.	1,429 sq. ft.
CDS1440	4V	46 ft.	23 ft.	1,657 sq. ft.
CDS1540	4V	49 ft.	25 ft.	1,902 sq. ft.
CDS1860	6V	59 ft.	30 ft.	2,738 sq. ft.
CDS2060	6V	66 ft.	33 ft.	3,380 sq. ft.
CDS2260	6V	72 ft.	36 ft.	4,090 sq. ft.
CDS2580	8V	82 ft.	41 ft.	5,282 sq. ft.
CDS2880	8V	92 ft.	46 ft.	6,625 sq. ft.
CDS3080	8V	98 ft.	49 ft.	7,605 sq. ft.
CDS3580	8V	115 ft.	57 ft.	10,351 sq. ft.
CDS4080	8V	131 ft.	66 ft.	13,250 sq. ft.
CDS5080	8V	164 ft.	82 ft.	21,125 sq. ft.

Construction

Frame: galvanized reinforced steel, with optional colored powder coating
Cover: transparent PVC, flame retardant, waterproof, UV50+, anti mildew
Base: anchored and reinforced foundation
Door: glass in a steel frame
Windows: glass on hydraulics, with fiberglass screen vents set into the shell
Services: solar or generator, or connection to existing power and water

Rated for wind, snow, seismic movement and standing water. Built by Domespaces, a division of Dyester Corp.

Before you order

Do I need a permit?

Often, and the threshold varies by county. Structures over roughly 200 square feet, or anything with plumbing or permanent power, generally require review. We supply engineering drawings and load calculations for your submission.

Before you order

What does the base need?

A level, compacted pad with anchor points. Concrete, timber deck and screw piles are all used. The anchor pattern is in the drawings and depends on the model and your local wind load.

Before you order

Which model fits the site?

Call us with the site dimensions, your winter low and how you plan to use it. We will tell you which models fit and what each one costs delivered. The price on the page is the price you pay, one unit or ten.
