Cicada Chrysalis Dome

$12,600.00

$12,600.00 · 6 configurations

Lead time

6 to 10 weeks from order, size dependent. We confirm the date in writing when the order is placed.

Freight

Ships LTL freight to a street address. Liftgate and curbside delivery are included on standard orders. White glove placement is available where the site allows. See Shipping and White Glove for full detail.

Assembly

Ships with drawings and a numbered assembly sequence. Most operators use a local crew. Call us and we will help you scope that work first.

Warranty

The manufacturer's warranty, registered in your name at handover. Terms are stated on the product page before you order.

What this is

Specification and build.

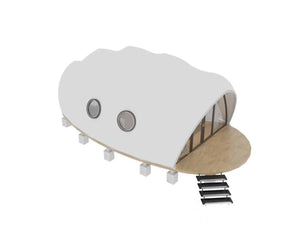

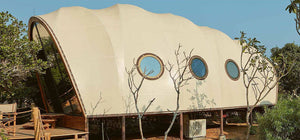

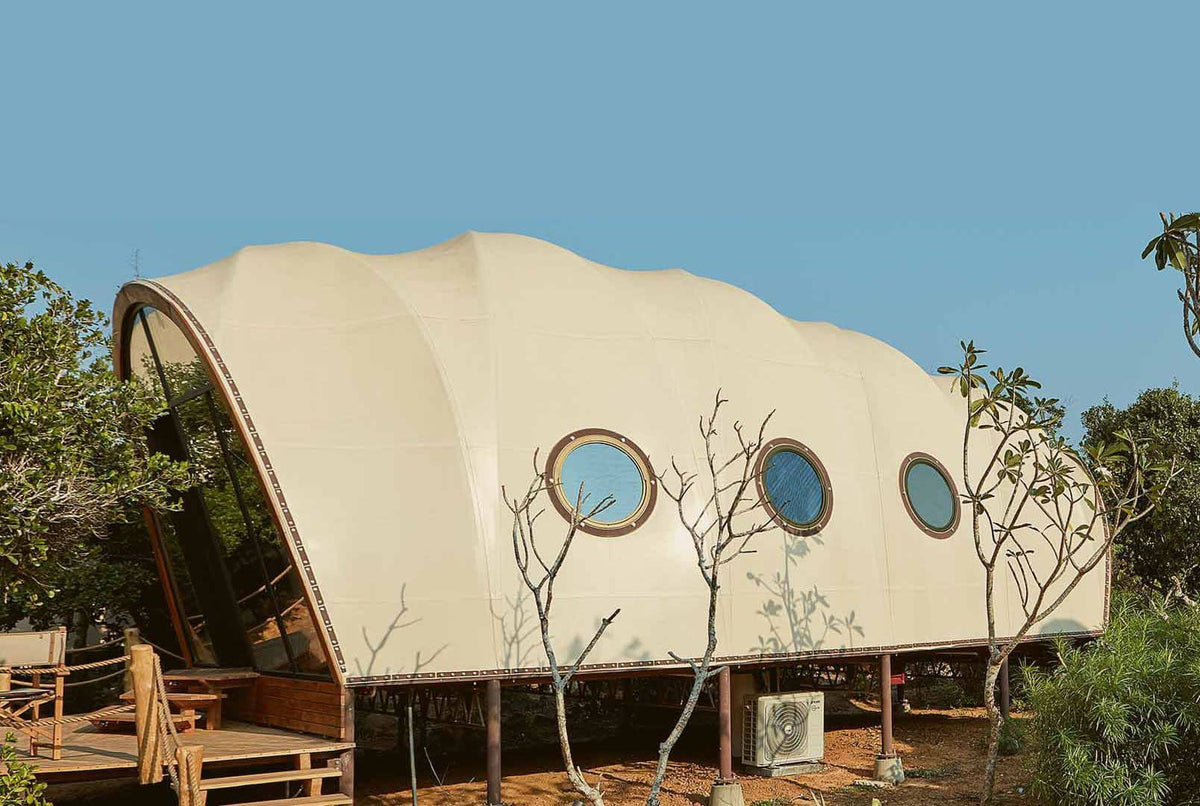

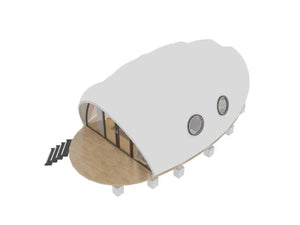

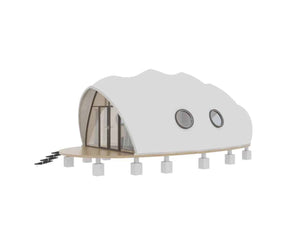

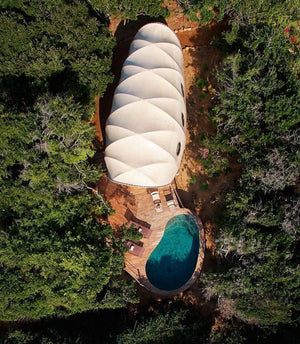

An elongated dome with 431 square feet of floor and a glass door at each end, both opening onto their own deck. Two doors is the practical difference from the rest of the range: you get genuine cross ventilation end to end, and a second entrance that lets you separate a service side from a guest side.

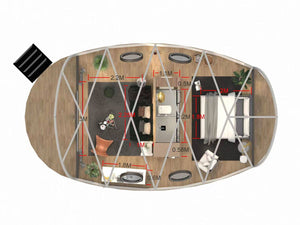

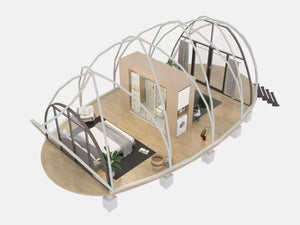

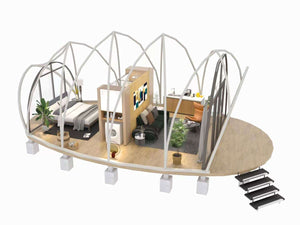

The floor plate is long enough to carry a bedroom, a kitchenette, a seating area and a laundry zone in sequence rather than stacked on top of each other. Round glass windows run down both sides.

Specifications

Model	CSE9400
Dimensions	16.4 × 29.5 × 11.5 ft
Floor area	431 sq ft
Frame	Anti-rust treated galvanised steel tube
Cover	PVDF. Flame retardant, waterproof, UV50+, self-cleaning
Floor	Elevated wood, anti-termite treated, with wooden stairs
Windows	Full tempered glass at the front, round glass windows on each side
Doors	Two tempered glass doors in aluminium alloy frames, front and back, each with a deck
Anchoring	Extended steel pipe anchor points
Colours	White, black, grey, cream, orange, blue

Options

Thermo-insulated liner
Curtain and rod set
Heating: wood stove off-grid, or mini HVAC on-grid
Cooling: mini HVAC

Furniture is not included. Modular toilet, shower and kitchen units are specified separately and are not included in the dome price.

Priced and lead-timed per project. Tell us the size, the finish and the unit count and we will come back with a quote.

Before you order

Do I need a permit?

Often, and the threshold varies by county. Structures over roughly 200 square feet, or anything with plumbing or permanent power, generally require review. We supply engineering drawings and load calculations for your submission.

Before you order

What does the base need?

A level, compacted pad with anchor points. Concrete, timber deck and screw piles are all used. The anchor pattern is in the drawings and depends on the model and your local wind load.

Before you order

Which model fits the site?

Call us with the site dimensions, your winter low and how you plan to use it. We will tell you which models fit and what each one costs delivered. The price on the page is the price you pay, one unit or ten.
