Belair Domes - PCDO Series

$22,280.00

$22,280.00 to $25,500.00 · 2 configurations

Lead time

6 to 10 weeks from order, size dependent. We confirm the date in writing when the order is placed.

Freight

Ships LTL freight to a street address. Liftgate and curbside delivery are included on standard orders. White glove placement is available where the site allows. See Shipping and White Glove for full detail.

Assembly

Ships with drawings and a numbered assembly sequence. Most operators use a local crew. Call us and we will help you scope that work first.

Warranty

The manufacturer's warranty, registered in your name at handover. Terms are stated on the product page before you order.

What this is

Specification and build.

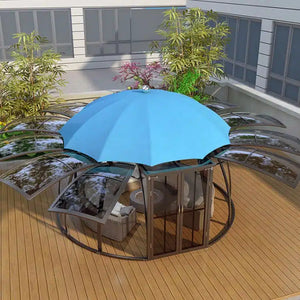

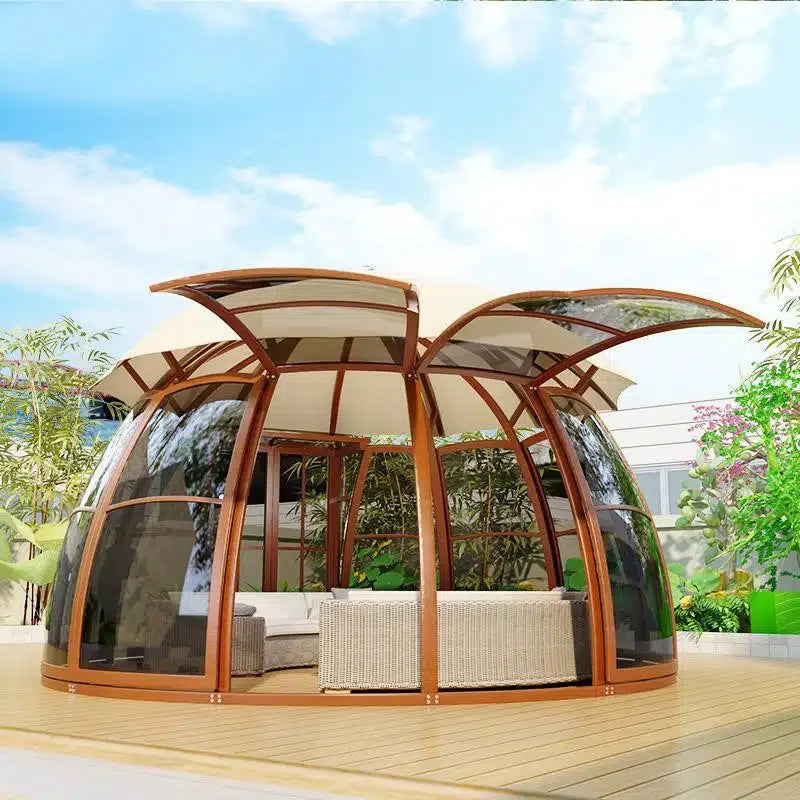

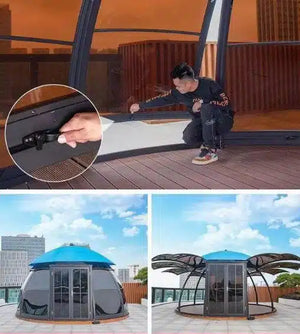

The Belair does something no other dome in the range does: its polycarbonate wall panels lift upward like wings and lock open, turning the unit from an enclosed room into an open pavilion with the raised panels acting as sunshades or rain canopies.

That makes one structure serve two jobs on the same site: open through the day as a restaurant, bar, pop-up or terrace, closed at night as private accommodation. The panels are polycarbonate on an aluminium-reinforced frame, rigid enough to be structurally sound in either position.

Sizes

Model	Diameter	Floor area
PCDOA 5300	16 ft	200 sq ft
PCDOA 6300	20 ft	215 sq ft

Construction

Frame	Moulded polycarbonate reinforced with aluminium supports, black
Shell panels	Transparent polycarbonate. Flame retardant, waterproof, UV50+, anti-corrosion, impact resistant
Roof	Polycarbonate umbrella roof
Windows	Polycarbonate, on the sides
Door	Polycarbonate in aluminium alloy frame
Insulation	Nano insulating film on the shell panels

Options

Curtain and rod set
Heating and cooling: mini HVAC
Integrated modular toilet and shower

Power and water can run from solar or a generator, or connect to existing supply.

Furniture is not included. Modular toilet, shower and kitchen units are specified separately and are not included in the dome price.

Priced and lead-timed per project. Tell us the size, the finish and the unit count and we will come back with a quote.

Before you order

Do I need a permit?

Often, and the threshold varies by county. Structures over roughly 200 square feet, or anything with plumbing or permanent power, generally require review. We supply engineering drawings and load calculations for your submission.

Before you order

What does the base need?

A level, compacted pad with anchor points. Concrete, timber deck and screw piles are all used. The anchor pattern is in the drawings and depends on the model and your local wind load.

Before you order

Which model fits the site?

Call us with the site dimensions, your winter low and how you plan to use it. We will tell you which models fit and what each one costs delivered. The price on the page is the price you pay, one unit or ten.
