Coronado Fire Pit - Corten Steel
6 to 10 weeks from order, size dependent. We confirm the date in writing when the order is placed.
Ships LTL freight to a street address. Liftgate and curbside delivery are included on standard orders. White glove placement is available where the site allows. See Shipping and White Glove for full detail.
Ships with drawings and a numbered assembly sequence. Most operators use a local crew. Call us and we will help you scope that work first.
The manufacturer's warranty, registered in your name at handover. Terms are stated on the product page before you order.
Specification and build.

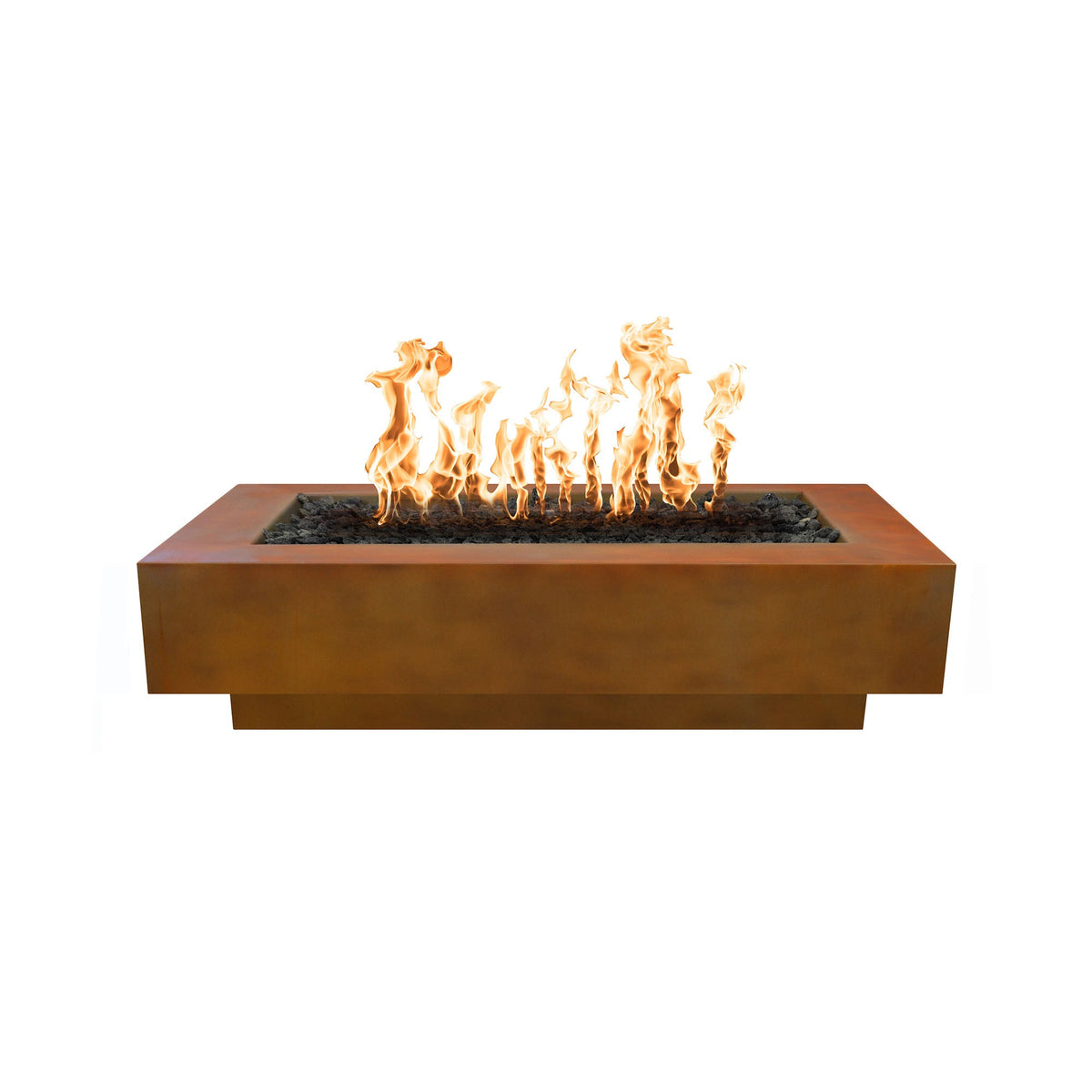

The Coronado is a long, low linear fire pit, 28 inches deep and 15 inches tall in every length, so it reads as a horizon of flame rather than a campfire in a bowl. At coffee-table height it anchors a ring of seating without blocking the view across it.
Six lengths run from 48 to 108 inches, producing 40,000 to 120,000 BTU. Lava rock is included to conceal the burner and spread the flame evenly across the pan. Specify natural gas or propane and one of five ignition systems, from a simple match-lit burner to a CSA-certified plug-and-play electronic start.
Corten steel ships raw. Over the first few months outdoors it grows a dense russet oxide layer that then seals the metal beneath it, so the finish is also the protection. It deepens with exposure instead of failing. Expect the colour to keep shifting for a season or two before it settles.
Specifications
| Size | Overall (L × W × H) | Fire pan opening | Burner | BTU |
|---|---|---|---|---|
| 48″ | 48″ × 28″ × 15″ | 38″ × 18″ | 30″ × 10″ | 40,000 |
| 60″ | 60″ × 28″ × 15″ | 50″ × 18″ | 42″ × 10″ | 50,000 |
| 72″ | 72″ × 28″ × 15″ | 62″ × 18″ | 54″ × 10″ | 70,000 |
| 84″ | 84″ × 28″ × 15″ | 74″ × 18″ | 66″ × 10″ | 90,000 |
| 96″ | 96″ × 28″ × 15″ | 86″ × 18″ | 78″ × 10″ | 100,000 |
| 108″ | 108″ × 28″ × 15″ | 96″ × 18″ | 90″ × 10″ | 120,000 |
Fuel: natural gas or liquid propane. Ignition: match lit; match lit with flame sense (LC certified); spark ignition with flame sense; low-voltage electronic (CSA certified); or plug and play (CSA certified).
In the box
- Fire pit body with stainless steel linear burner
- Lava rock
- Gas components for the ignition system selected
Handmade in the USA. One-year limited manufacturer warranty. Because each unit is fabricated individually, small variations in finish and texture are normal and are not considered defects.
Do I need a permit?
Often, and the threshold varies by county. Structures over roughly 200 square feet, or anything with plumbing or permanent power, generally require review. We supply engineering drawings and load calculations for your submission.
What does the base need?
A level, compacted pad with anchor points. Concrete, timber deck and screw piles are all used. The anchor pattern is in the drawings and depends on the model and your local wind load.
Which model fits the site?
Call us with the site dimensions, your winter low and how you plan to use it. We will tell you which models fit and what each one costs delivered. The price on the page is the price you pay, one unit or ten.
